For a more complete list of compatibility with the CAT6 Slim Type In-Line Coupler Extension, click on the Additional Information tab.
Description
CAT6 In-Line Coupler, Ether
net Data Coupler Extension

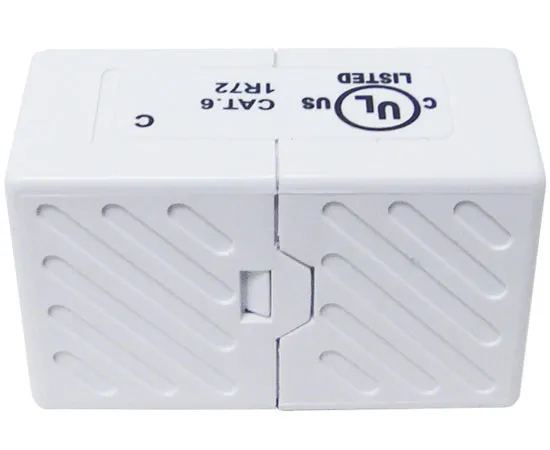

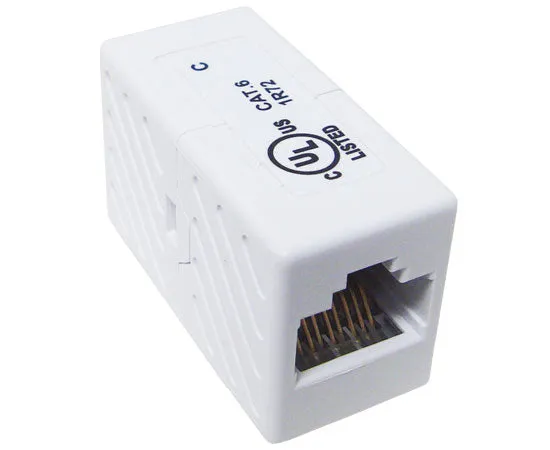

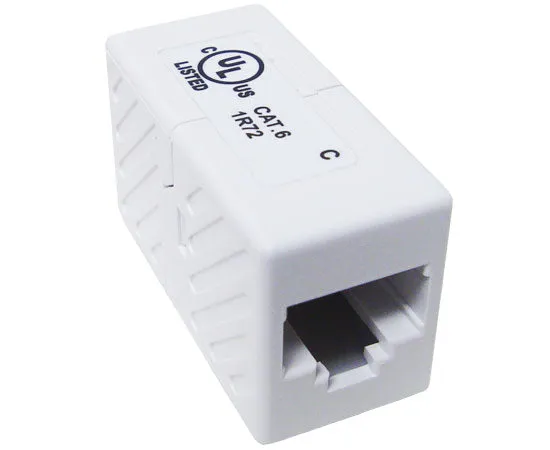

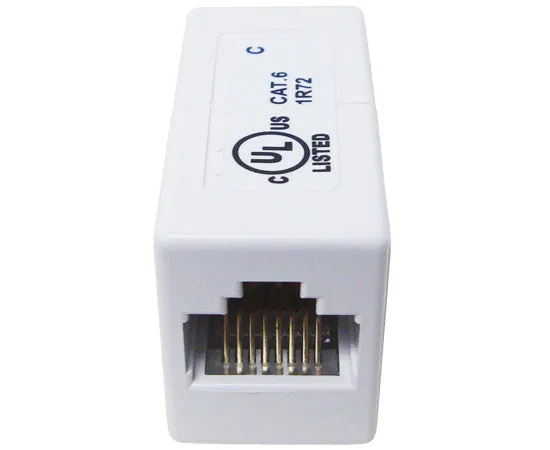

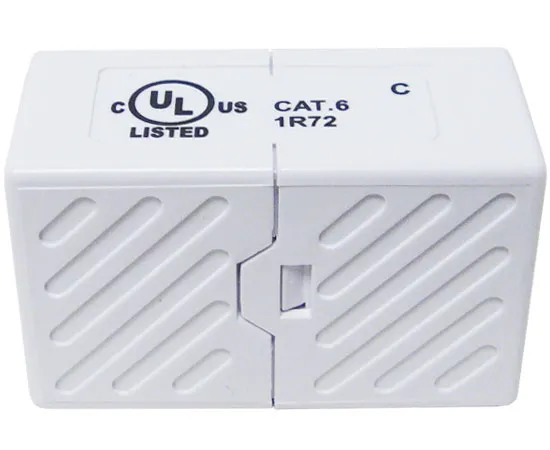

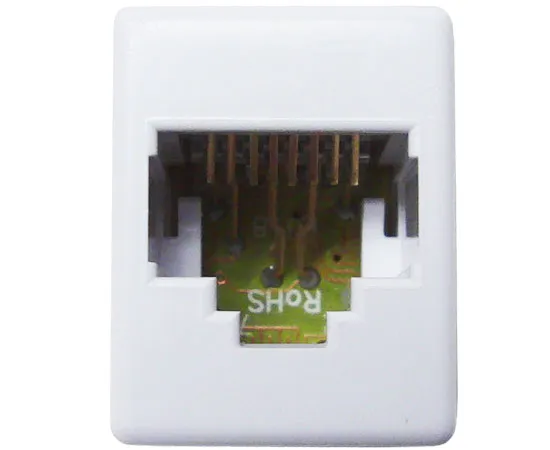

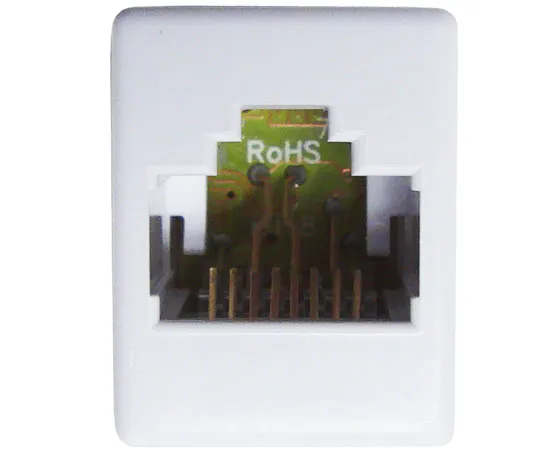

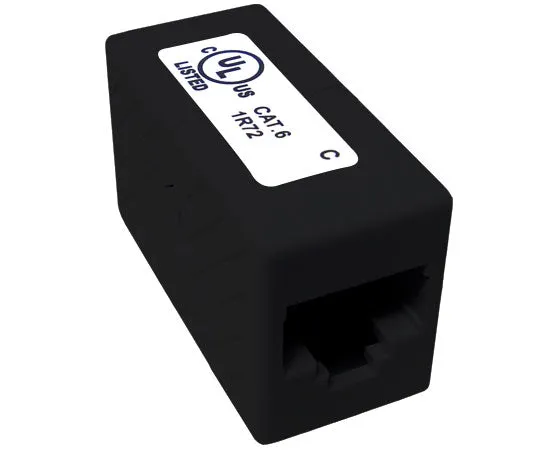

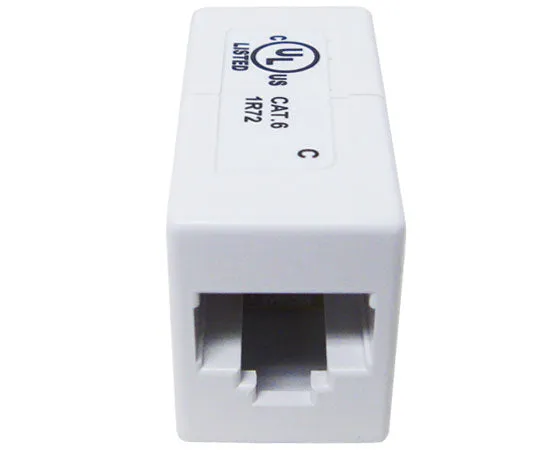

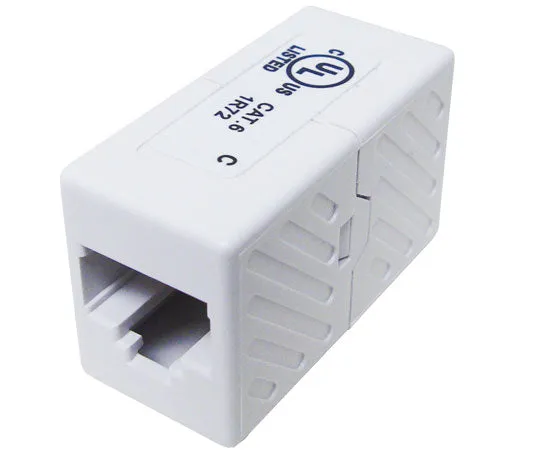

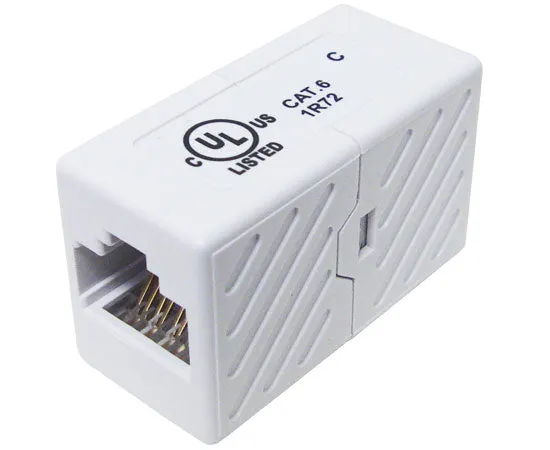

Our CAT6 Slim In-Line Coupler Extension are engineered with PCB technology, phosphor bronze IDC contacts, gold plated prongs, and a fire-retardant plastic housing. The CAT6 Slim Coupler line is engineered to simplify the connection helping you save time and money. Simply plug in your patch cables and/or RJ45 terminated CAT6 cables and you're done.
Because we take great pride in our quality control procedures and our commitment to quality our CAT6 Slim In-Line Coupler Extension is subject to UL standards and is UL Listed. Our CAT6 Slim Coupler also meet all requirements for EIA/TIA and also inspected and tested to comply with stringent transmissions and safety standards.
To complete your CAT6 network we carry a full end to end solution including , , , , , and . We also have a large assortment of , and that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.
Features
Features
- CAT6 Performance Speeds Of Up To 600 MHz
- Meets & Exceeds Industry Standards
- For Use With
- One RJ-45 Female To One RJ-45 Female
- Designed For Computer Networking Applications
- Meticulously Engineered To Deliver Exceptional Performance
- High Quality Connection And Reliable Performance
- Small Form-Factor
- Gold Plated Over Nickel Contacts For Signal Clarity
- UL Listed
Applications
- Voice
- 10BaseT
- 1000Base-T, VOIP
- 4 Mbps Token Ring
- 10 Mbps Ethernet
- 155 Mbps ATM
- ISDN
Specifications
Material
RJ45 Jack: |
|
| Housing: | ABS, UL 94V-0 with optional color |
| Contact Bracket: | PC, UL 94V-2, Transparent color |
| Height: | 0.8 inches |
| Width: | 0.6 inches |
| Depth: | 1.4 inches |
RJ45 Jack Contact: |
|
| Material: | Phosphor Bronze with plated Nickel |
| Finish: | 50 micro-inch Gold plated on plug contact area |
| PCB: | FR4, UL 94V-0 |
Performance
| Insertion Force: | 20N max. |
| Retention Strength: | 7.7 kg between Jack and Plug |
| Operating temperature: | -10ºC to 60ºC / 14ºF to 140ºF |
| Life (mating cycles): | 750 cycles min |
| The CAT 5E transmission performance is in compliance with ANSI/TIA/EIA 568 B.2 standards | |
Additional Information
Additional Information
Our CAT6 Keystone Couplers are compatible with:
What’s In The Box
What’s In The Box
- CAT6 Female RJ45 to Female RJ45 Slim Type In-Line Coupler Extension
