Product Details
＋

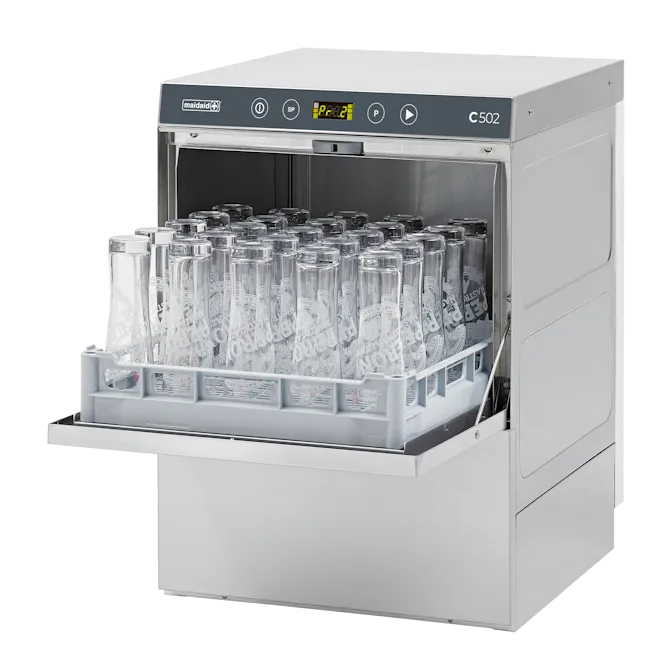

Maidaid C502/C502D Glasswasher 500mm basket
- C502 gravity waste version
- 500 x 500mm rack
- Maximum useable height 340mm
- Dimensions W580 x D610 x H810mm
- Height excludes adjustable feet which will add 10 - 20mm
- Three standard cycle time options with further options available
- Cycle times can be tailored to site requirements
- Power 2.6/4.5/6.5kW
- 13/20/30 Amps
- 2 year warranty
- Four button bright LED display with soft touch controls, twin traffic lights giving instant status updates & operational self-diagnostics
- Alarms menu with hi-level information retrieval
- Improved wash action from quick release parallel wash & rinse arm design
- Surface scrap tray filters supplied as standard
- Fitted drain pump version available - drain pump cannot be retro fitted
- Three standard cycle time options with further options available
- Cycle times can be tailored to site requirements
- Automatic self-cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Patented dual flow wash pump - reducing power consumption whilst retaining wash efficiency
- Moulded wash tank for easy cleaning
- Moulded rack guide giving partial double skin
- Accurate detergent and rinse aid peristaltic dosing pumps as standard
- Supplied with two open cup/glass racks & cutlery insert
| C Range - Undercounter | C502 |
|---|---|
| Width x Depth x Height mm | 580 x 610 x 810mm |
| Feet Height | 10mm-20mm |
| Basket size | 500x500mm |
| Maximum useable height | 340mm |
| Door Opening | 365mm |
| Cycle times | 70/90/180 Seconds |
| Water consumption per cycle | 2.0 Litres |
| Wash tank capacity | 20 Litres |
| Phase - Options | Single/3-Phase |
| Power Single Phase Options | 2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp) |
| Power Three Phase | 6.5kW(16Amp) |
| Detergent pump | Peristaltic - non timed |
| Rinse aid pump | Peristaltic - non timed |
| Drain pump | No |
| Breaktank | No |
| Water supply pressure | 2 to 4 Bar |
| Body Construction | Partial Double Skin |
| Door/Hood Construction | Double Skin |
| Scrap Trays | Yes |
| Internal Rinse Booster Pump | N/A |
| Number Of Cycles | 3 |
| Total Maximum Load(as supplied) | 6.5kW(30Amp) - Single Phase |
