Product Details
+

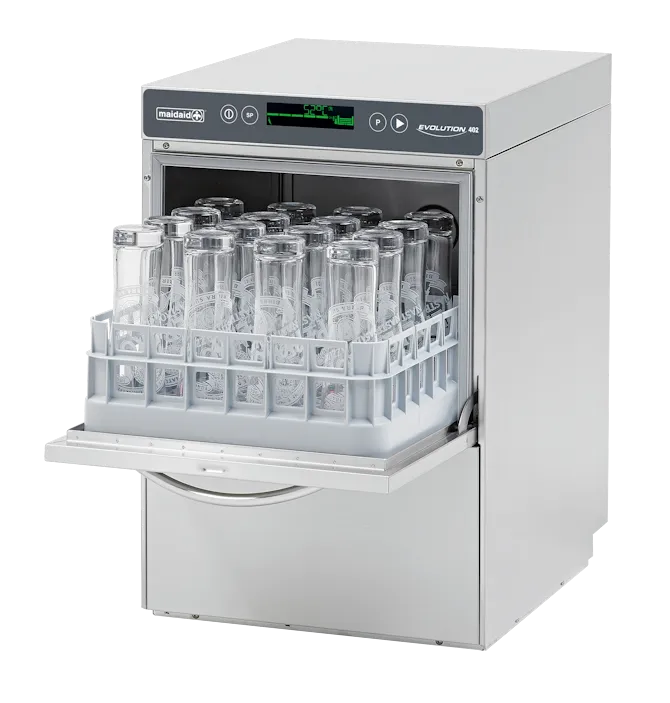

Maidaid EVO402 Glasswasher 400mm Basket
- EVO402 pumped waste
- Breaktank as standard
- 400 x 400mm rack
- Maximum useable height 295mm
- Dimensions W465 x D560 x H690mm
- Height excludes adjustable feet which will add 5 - 15mm
- Three standard cycle time options
- Extensive range of special cycles
- Cycle times can be tailored to site requirements
- Power 2.9kW
- 13 Amps
- 2 year warrant
- Polychromatic LCD display and user interface giving uncomplicated machine status updates
- Improved wash action from quick release parallel wash & rinse arm design
- Surface scrap tray filters supplied as standard
- Improved triple wash tank filtration
- Four button control fascia with special programmes button, operational self-diagnostics & alarms menu
- Drain pump & breaktank supplied as standard
- Three standard cycle options with an extensive range of special cycles
- Cycle times can be tailored to site requirements
- Reduced water consumption
- Comprehensive automatic self cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Fully double skinned minimising both acoustic output and reduced heat loss
- Patented dual flow wash pump with soft start - reducing power consumption whilst retaining wash efficiency
- Full door seal & door ajar facility
- Moulded wash tank for easy cleaning
- Moulded rack guide
- Accurate detergent and rinse aid peristaltic dosing pumps as standard
- Priming and dosing of chemicals enabled from fascia controls
- Supplied with two open cup/glass racks & cutlery insert
Evo - Undercounter | Evo402 |
---|---|
Width x Depth x Height mm | 465 x 560 x 690mm |
Feet Height | 5mm-15mm |
Basket size | 400x400 |
Maximum useable height | 295mm |
Door Opening | 320mm |
Cycle times | 90/120/150 Seconds |
Water consumption per cycle | 1.1 Litres |
Wash tank capacity | 8 Litres |
Phase - Options | Single Phase Only |
Power Single Phase Options | 2.9kW(13Amp) |
Power Three Phase | N/A |
Detergent pump | Peristaltic-Non Timed |
Rinse aid pump | Peristaltic-Non Timed |
Drain pump | Yes |
Breaktank | Yes |
Water supply pressure | 2 to 4 Bar |
Body Construction | Double Skin |
Door/Hood Construction | Double Skin |
Scrap Trays | Yes |
Internal Rinse Booster Pump | Yes |
Number Of Cycles | 3 |
Total Maximum Load(as supplied) | 2.9kW(13Amp) Single Phase |
