Product Details
＋

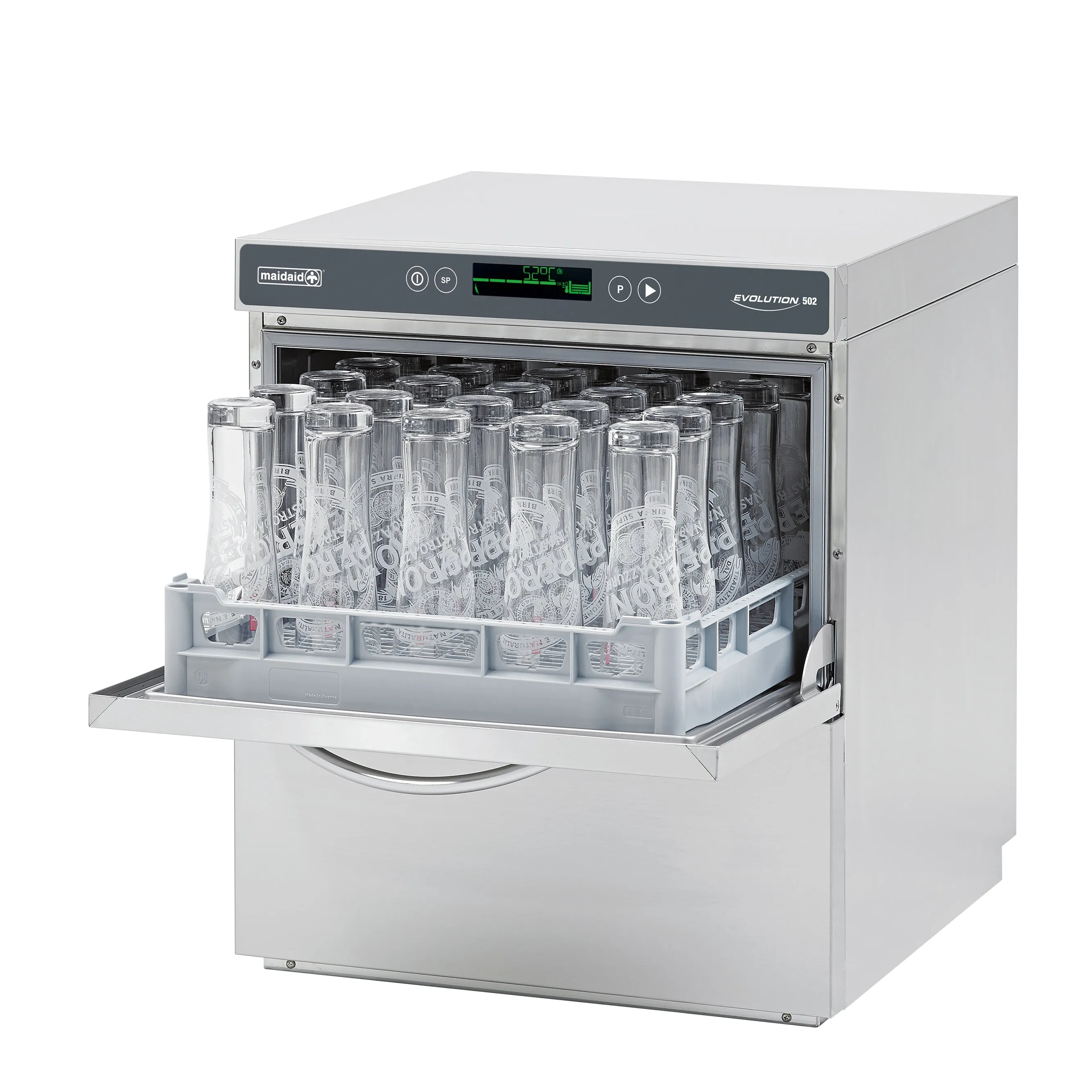

Maidaid Evolution Undercounter Glasswasher EVO502 500mm basket
- EVO502 pumped waste
- Breaktank as standard
- 500 x 500mm rack
- Maximum useable height 265mm
- Dimensions W600 x D600 x H710mm
- Height excludes adjustable feet which will add 10 - 20mm
- Three standard cycle time options
- Extensive range of special cycles
- Cycle times can be tailored to site requirements
- Power 2.6/4.5/6.5kW
- 13/20/30 Amps
- 2 year warranty
- Polychromatic LCD display and user interface giving uncomplicated machine status updates
- Improved wash action from quick release parallel wash & rinse arm design
- Stainless steel scrap tray filters supplied as standard
- Improved triple wash tank filtration
- Four button control fascia with special programmes button, operational self-diagnostics & alarms menu
- Drain pump & breaktank supplied as standard
- Three standard cycle options with an extensive range of special cycles
- Cycle times can be tailored to site requirements
- Reduced water consumption
- Comprehensive automatic self cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Fully double skinned minimising both acoustic output and reduced heat loss
- Patented dual flow wash pump with soft start - reducing power consumption whilst retaining wash efficiency
- Full door seal & door ajar facility
- Moulded wash tank for easy cleaning
- Moulded rack guide
- Accurate detergent and rinse aid peristaltic dosing pumps as standard
- Priming and dosing of chemicals enabled from fascia controls
- Supplied with two open cup/glass racks & cutlery insert
| Evo - undercounter | EVO502 |
|---|---|
| Width x Depth x Height mm | 600 x 600 x 710mm |
| Feet Height | 10mm-20mm |
| Basket size | 500x500mm |
| Maximum useable height | 265mm |
| Door Opening | 290mm |
| Cycle times | 90/120/150 Seconds |
| Water consumption per cycle | 1.8 Litres |
| Wash tank capacity | 15 Litres |
| Phase - Options | Single/3-Phase |
| Power Single Phase Options | 2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp) |
| Power Three Phase | 6.5kW(16Amp) |
| Detergent pump | Peristaltic-Non Timed |
| Rinse aid pump | Peristaltic-Non Timed |
| Drain pump | Yes |
| Breaktank | Yes |
| Water supply pressure | 2 to 4 Bar |
| Body Construction | Double Skin |
| Door/Hood Construction | Double Skin |
| Scrap Trays | Yes |
| Internal Rinse Booster Pump | Yes |
| Number Of Cycles | 3 |
| Total Maximum Load(as supplied) | 6.5kW(30Amp) Single Phase |
