Product Details
＋

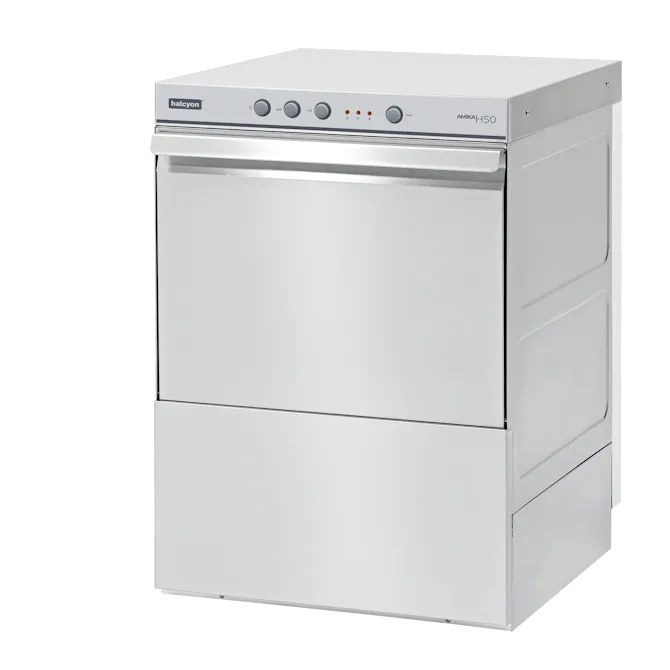

Amika AMH50/AMH50D Glasswasher 500mm Basket
The AMH Range - Entry level machines that have been designed to fit your cost requirments.
- AMH50 gravity waste or drain pump AMH50D version
- 500 x 500mm rack
- Maximum useable height 340mm
- Dimensions W580 x D610 x H810mm
- Height excludes adjustable feet which will add 10 - 20mm
- Two standard cycle
- Power 2.6/4.5/6.5kW
- 13/20/30 amps
- 1 year warranty
- Increased usable height
- Accurate detergent & rinse aid peristaltic dosing pumps with dosing setup by fascia controls
- Easy clean parallel wash and rinse arm assembly
- Drain pump version available
- Optional surface scrap tray filters
| AMH - Undercounter | AMH50 |
|---|---|
| Width x Depth x Height mm | 580 x 610 x 810mm |
| Feet Height | 10mm-20mm |
| Basket size | 500x500mm |
| Maximum useable height | 340mm |
| Door Opening | 365mm |
| Cycle times | 90/180 Seconds |
| Water consumption per cycle | 2.5 Litres |
| Wash tank capacity | 20 Litres |
| Phase - Options | Single/3-Phase |
| Power Single Phase Options | 2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp) |
| Power Three Phase | 6.5kW(16Amp) |
| Detergent pump | Peristaltic - non timed |
| Rinse aid pump | Peristaltic - non timed |
| Drain pump | Optional AMH50D |
| Breaktank | No |
| Water supply pressure | 2 to 4 Bar |
| Body Construction | Single Skin |
| Door/Hood Construction | Double Skin |
| Scrap Trays | Optional |
| Internal Rinse Booster Pump | N/A |
| Number Of Cycles | 2 |
| Total Maximum Load(as supplied) | 6.5kW(30Amp) - Single Phase |
- Supplied with two open cup/glass racks & cutlery insert as standard
