Product Details

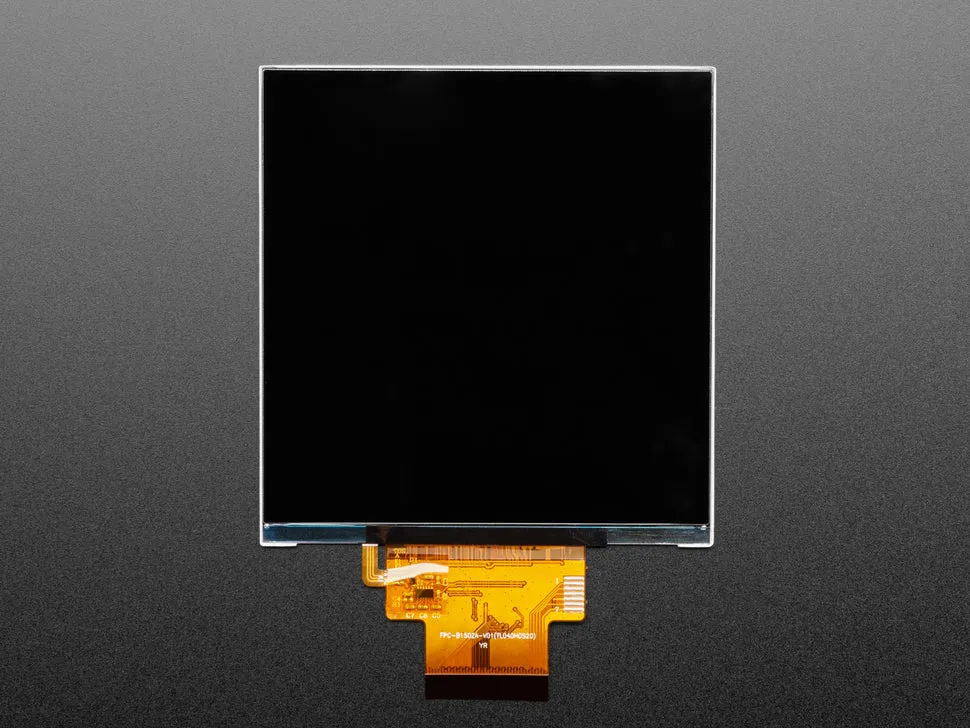

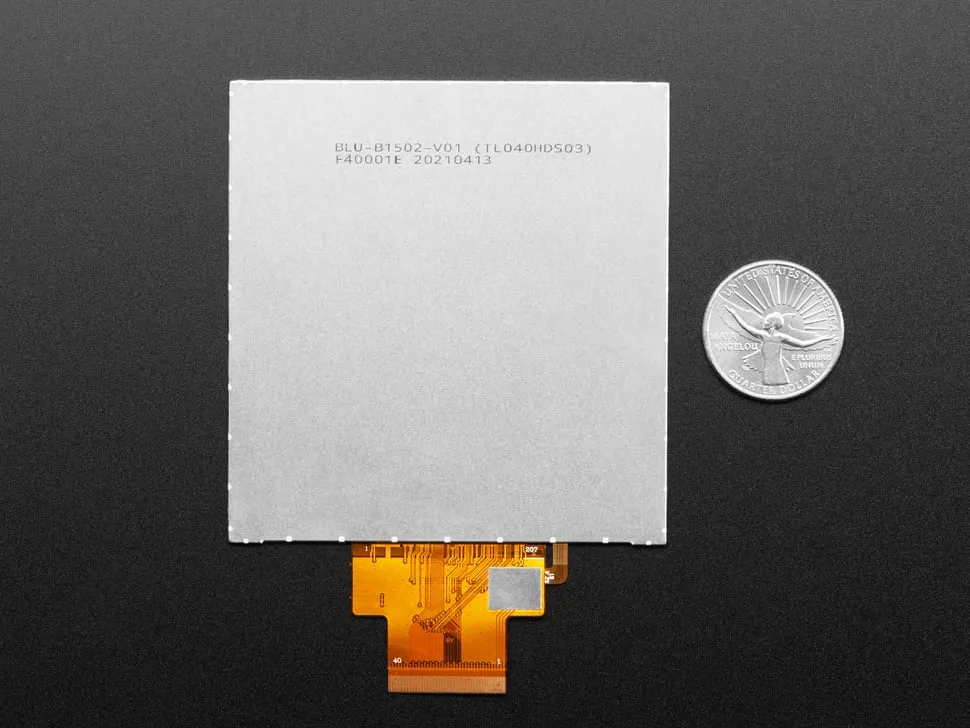

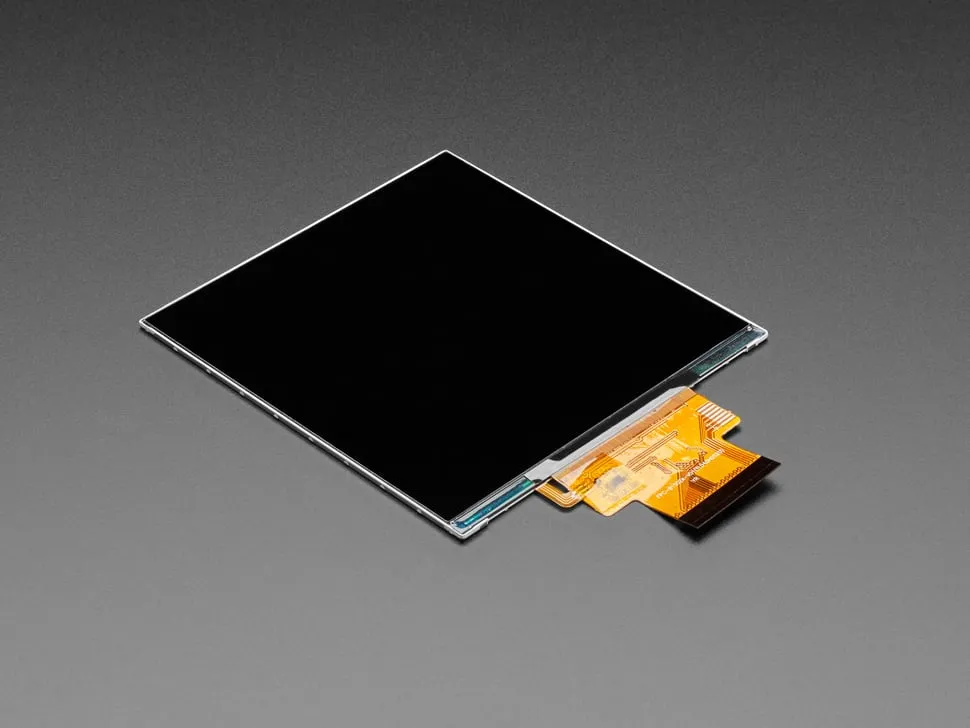

This Square RGB 666 TTL TFT Display is ideal for experienced hackers and tech-savvies, with its large 4" visual field and 720x720 16-bit full-color resolution. IPS technology allows vibrant colors to be viewed up to 80 degrees off-axis.

This version does not have a touchscreen.

The ST7701S TFT driver utilizes 'dot clock' data in both RGB forms. Unlike other uncommonly shaped screens, this product is quick to power up without prior SPI configuration. Moreover, beware that the 40-pin connector is not compatible with the 800x480 (4.3", 5" or 7") or 480x272 (4.3") rectangular displays' pinout. Therefore, this new-age LCD is a distinct commodity.

To power the Square RGB 666 TTL TFT Display - 4" 720x720 - No Touchscreen, you'll need a microcontroller capable of driving TTL RGB TFT like the ESP32-S3 with octal PSRAM, or a computer like a Raspberry Pi with a direct-DPI connection or ICN6211 intermediary chip. Neither a Feather nor Arduino can handle this task.

This is just the display module, no driver PCB is included!

You cannot use these with an everyday microcontroller unless it specifically has support for RGB-666 displays so please do not purchase unless you know for sure that it can plug into a driver board with the correct pinout as well.



Technical Details



Square RGB 666 TTL TFT Display - 4" - No Touchscreen
  • Localstock
  • Overseasstock

$ 54.77

$ 54.77
