General Information

Manufacturer: StarTech.com
Manufacturer Part Number: 4POSTRACK42
Manufacturer Website Address: www.startech.com
Brand Name: StarTech.com
Product Name: Rack Frame
Marketing Information:

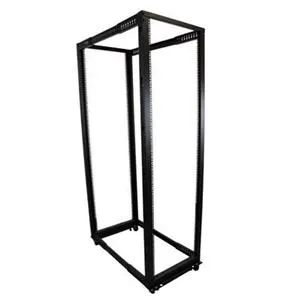

The 4POSTRACK42 42U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.

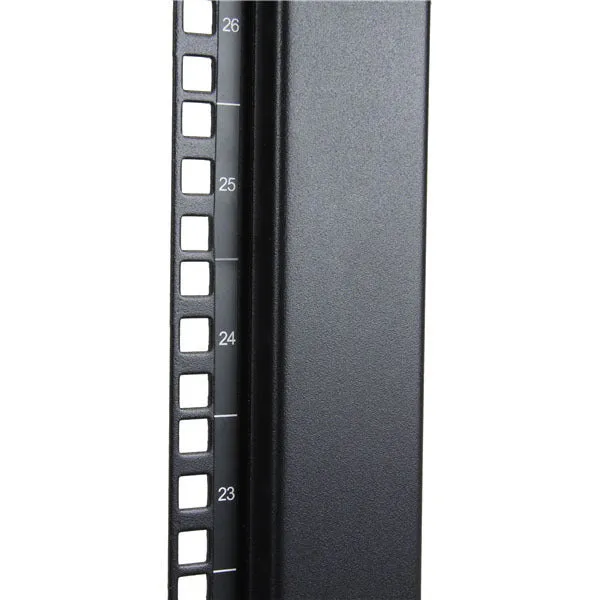

Designed with ease of use in mind, this 42U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.

This durable 4-post rack supports a static loading capacity of up to 1320lbs (600kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.

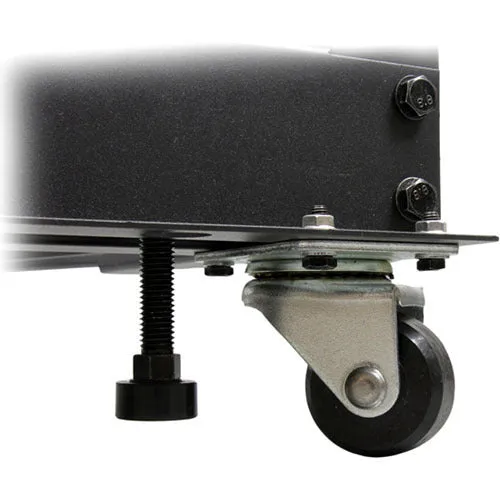

For a complete rack solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securing the rack to the floor if needed, providing you with many options to customize the rack to fit your environment.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Type: Rack Frame

Technical Information

Front Rail: Yes
Rear Rail: Yes
Application/Usage: A/V Equipment
Application/Usage: KVM Switch
Application/Usage: LAN Switch
Application/Usage: Patch Panel
Application/Usage: Server
Features: Leveling Feet
Features: Cable Management
Features: Casters

Physical Characteristics

Form Factor: Floor Standing
Color: Black
Material: Steel
Static/Stationary Weight Capacity: 1322.77 lb
Height: 77.6"
Width: 23.8"
Length: 41.3"
Rack Height: 42U
Rack Depth: 40"
Weight (Approximate): 84.88 lb

Miscellaneous

Package Contents:

• 2 x Left Vertical Rail


• 2 x Right Vertical Rail


• 2 x Base Bracket


• 8 x Corner Section


• 4 x Center Section


• 2 x Top Bracket


• 50 x M8 Bolt


• 50 x M8 Washer


• 1 x M6 (10mm) Wrench


• 1 x M8 (13mm) Wrench


• 6 x Phillips Screwdriver


• 4 x M6 Grounding Wire Bolts (short)


• 4 x M6 Grounding Wire Lock Washers


• 50 x M6 Cage Nut


• 50 x PVC Cup Washer


• 50 x M6 Phillips Head Screw


• 24 x Cable Management Hook


• 24 x Hook Mounting Screw


• 4 x Casters


• 4 x Leveling Feet


• 16 x M6 Screw


• 16 x M6 Flat Washer


• 16 x M6 Flange Nut


• 4 x Grounding Wires

Certifications & Standards:

• DIN 41494


• EIA


• ECA-310-E


• IEC 60297-3-100


• CE

Assembly Required: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: REACH

Warranty

Limited Warranty: 2 Year
