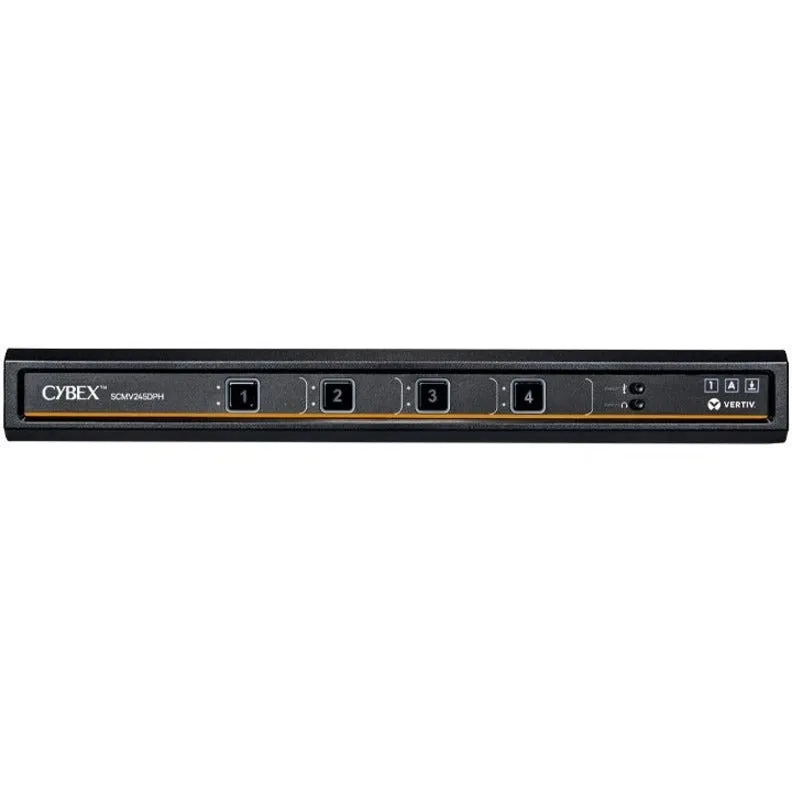

SCMV245DPH-400
The Vertiv Cybex Secure MultiViewer KVM continues to provide the KVM system solution required in accessing both classified and non-classified data. Through the use of an all new video port, the Cybex Secure MultiViewer KVM accepts either a standard HDMI or DP connector cable when the input/target video port has a universal connector. The Cybex Secure Multiviewer KVM can be used in either a single or dual display projection scenario with up to 16 computers on a single screen and features such as tiling, windowing, and touch screen.
High Security for Multiple Desktop Connectivity
The Vertiv Cybex Secure MultiViewer KVM continues to provide the KVM system solution required in accessing both classified and non-classified data. Through the use of an all new video port, the Cybex Secure MultiViewer KVM accepts either a standard HDMI or DP connector cable when the input/target video port has a universal connector. The Cybex Secure Multiviewer KVM can be used in either a single or dual display projection scenario with up to 16 computers on a single screen and features such as tiling, windowing, and touch screen.
- Simultaneously view multiple computers on a single monitor.
- Ability to interact with various security classifications on a single screen.
- With CNS, keyboard and mouse transitions occur seamlessly when moving the cursor across window borders.
- Direct interaction with any application through touch screen capabilities.
- Smart-card (CAC) or biometric readers for authentication across multiple secure computers.
SMALL SPACE, BIG CAPABILITIES
The Vertiv Cybex Secure MultiViewer KVM Switches enable simple integration of multiple computers into a combined content presented on 1 or 2 display(s), which builds in additional flexibility when it comes to video connections. The MultiViewer packs powerful capabilities in a small desktop footprint, ideal for areas with limited space.
VIDEO QUALITY AND FLEXIBILITY
The Vertiv Cybex MultiViewer Secure KVM Switch presents users with the widest array of video connections in the industry, including Display Port and HDMI. Resolution up to 4k @ 60Hz delivers extremely high accuracy, with video playing at the highest possible definition.
FULL-SERVICE SUPPORT
Vertiv is a world leader in KVM switch technology and provides a wide range of service solutions to troubleshoot and resolve issues in the field. Vertiv stands behind every Cybex Secure MultiViewer KVM Switch with a three-year, full-coverage factory warranty and optional extended warranty.
| GENERAL INFORMATION | |
|---|---|
|
Manufacturer
|
Vertiv
|
|
Manufacturer Part Number
|
SCMV245DPH-400
|
|
Brand Name
|
AVOCENT
|
|
Product Line
|
MultiView
|
|
Product Model
|
SCMV245DPH-400
|
|
Product Name
|
Cybex Secure MultiViewer KVM Switch 4 Port | NIAP Approved | Dual AC
|
|
Packaged Quantity
|
1
|
|
Product Type
|
KM Switchbox
|
| TECHNICAL INFORMATION | |
|
Number of Computers Supported
|
2
|
|
Number of Local Users Supported
|
1
|
|
Maximum Operating Distance
|
10 ft
|
| VIDEO | |
|
Maximum Video Resolution
|
3840 x 2160
|
| INTERFACES/PORTS | |
|
Network (RJ-45)
|
No
|
|
PS/2 Port
|
No
|
|
USB
|
Yes
|
|
HDMI
|
Yes
|
|
VGA
|
No
|
|
DisplayPort
|
Yes
|
|
Number of USB Ports
|
3
|
|
Number of HDMI Ports
|
6
|
|
Number of DVI Ports
|
0
|
| POWER DESCRIPTION | |
|
Input Voltage
|
|
|
Input Voltage Range
|
100 V AC - 240 V AC
|
| PHYSICAL CHARACTERISTICS | |
|
Form Factor
|
Desktop
|
|
Rack Height
|
1U
|
|
Height
|
1.7"
|
|
Width
|
13.7"
|
|
Depth
|
5"
|
|
Weight (Approximate)
|
3.50 lb
|
| MISCELLANEOUS | |
|
Package Contents
|
|
|
Environmentally Friendly
|
Yes
|
|
Country of Origin
|
United States
|
|
TAA Compliant
|
Yes
|
| WARRANTY | |
|
Limited Warranty
|
3 Year
|
