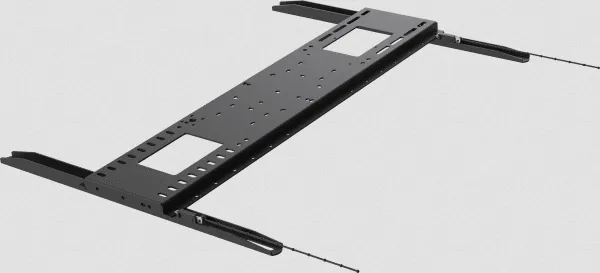

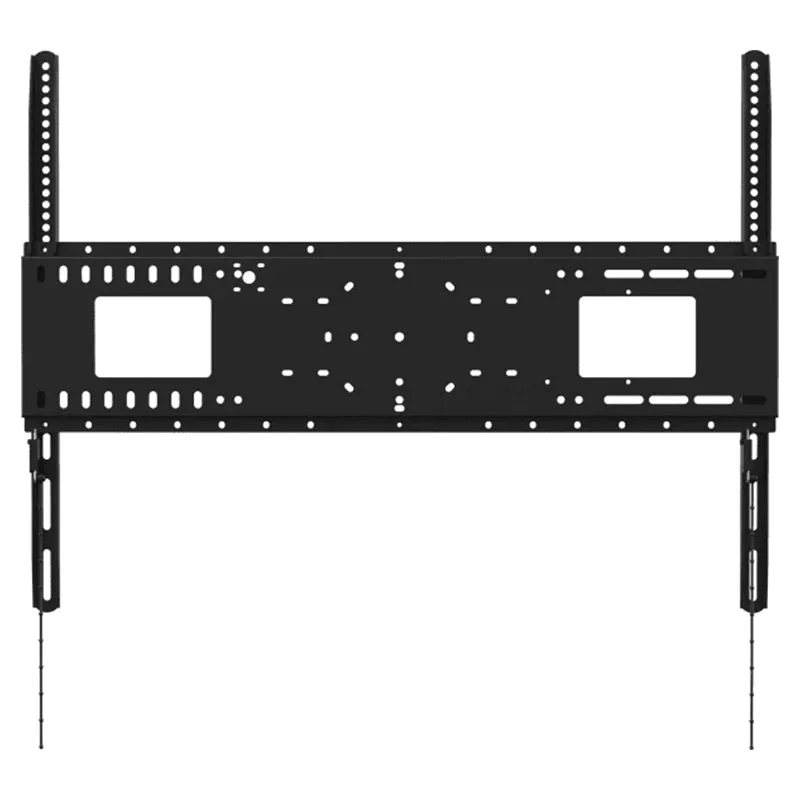

Vision’s Vision Flat-panel Mount – Wall range is designed by Vision’s engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included. The VFM-W8X6 fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 600 mm tall apart.
Heavy Duty
Interactive flat panels are large and very heavy. Vision’s VFM-W8X6 uses heavy gauge sheet metal to take the weight up to SWL 130 kg / 287 lb safely.
Everything Included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
For 47-90" Displays
Fits most displays from 47-90″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.
Meets ADA Regulations
The thin design holds the display just 36 mm / 1.4″ off the wall.This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
Designed for Professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.
Latches Securely

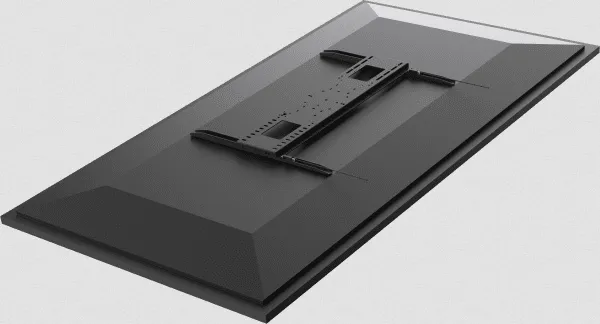

The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
Side by Side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.

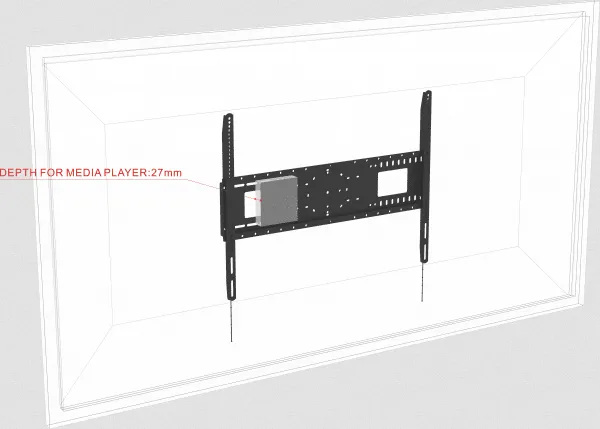

Hide Media Player
Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.
SPECIFICATIONS
PRODUCT DIMENSIONS - 845 x 635 x 36 mm / 33.3″ x 25.0″ x 1.4″ (width x height x depth)
PACKAGED DIMENSIONS - 880 x 235 x 40 mm / 34.6″ x 9.3″ x 1.6″
PRODUCT WEIGHT - 5.8 kg (12.9 lbs)
PACKAGED WEIGHT - 6.8 kg (15.0 lbs)
SAFE WORKING LOAD - 130 kg (287 lbs)
CONSTRUCTION MATERIAL - Cold-rolled Steel 3 mm (0.12")
COLOUR - Black
